T705

ARRIVES BETWEEN 1-3 business days
FREE SHIPPING on all orders above $199
Factory Authorized E-tailer

$35.37

Out of Stock

SKU T705 Category

Short Description

PRODUCT INFO


<ul>
<li>7 Day or 5/1/1 Programmable</li>
<li>Easy menu driven programming</li>
<li>Intuitive wake, leave, return, sleep programming icons</li>
<li>4 sq. inch display</li>
<li>Blue back-light</li>
<li>Glow in the dark light button</li>
<li>Easy access battery compartment</li>
<li>Electric or Gas configurable</li>
<li>Separate B &amp; O terminals</li>
<li>Separate heating and cooling swing (cycle rate) adjustments</li>
<li>Room temperature calibration adjustment</li>
<li>5 minute compressor delay protection (select-able on or off)</li>
<li>Simple Private label badge system</li>
<li>Easy wire color coded terminal blocks</li>
<li>Universal sub-base</li>
<li>Mounts on wall or junction box</li>
<li>Battery or 24V power</li>
<li>5 year warranty</li>
</ul>

Specifications

Specifications

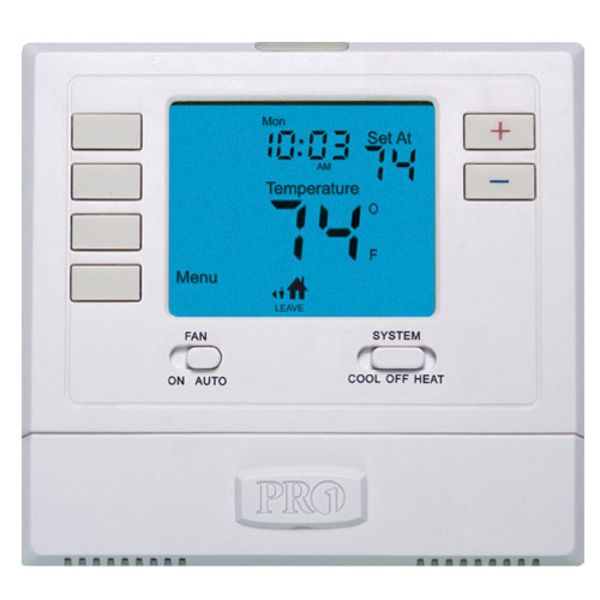

T705 Thermostat

The display range of temperature41°F to 95°F (5°C to 35°C)The control range of temperature44°F to 90°F (7°C to 32°C)Load rating1 amp per terminal, 1.5 amp maximum all terminals combinedDisplay accuracy± 1 °FSwing (cycle rate or differential)Heating is adjustable from 0.2°F to 2.0°F
Cooling is adjustable from 0.2°F to 2.0°FPower source18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Battery power from 2 AA Alkaline Energizer batteriesOperating ambient32° to +105° (O° to + 41°C)Operating humidity90% non-condensing maximumDimensions of thermostat4.7″W x 4.4″H x 1.1″D
