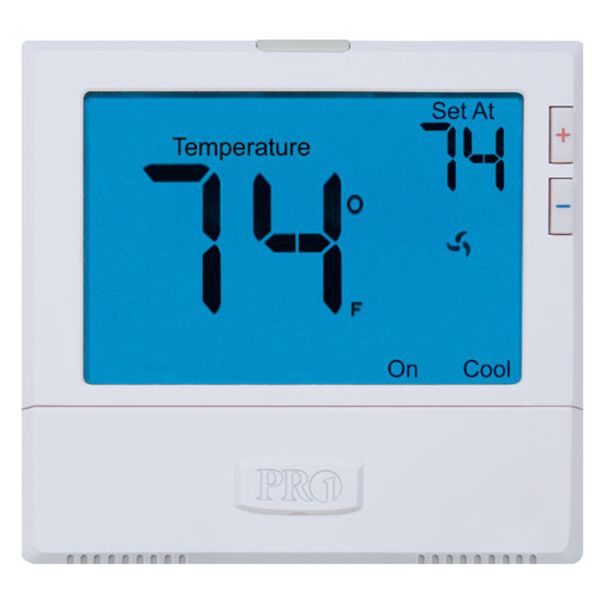

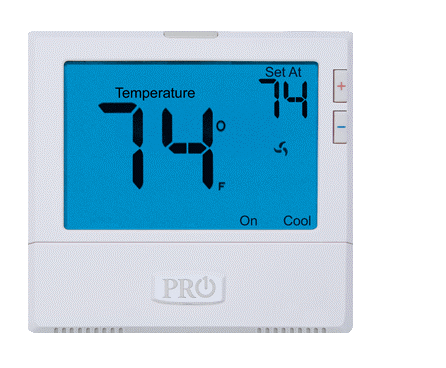

T801

ARRIVES BETWEEN 1-3 business days
FREE SHIPPING on all orders above $199
Factory Authorized E-tailer

$54.94

Discontinued

SKU T801 Categories ,

Short Description

PRODUCT INFO

  • Extra large, easy-to-read temperature display.
  • Auto Changeover
  • 8 sq. inch display
  • Blue Back-light
  • Glow in the dark light button
  • Separate B & O terminals
  • Room temperature calibration adjustment
  • 5 minute compressor delay protection (selectable on or off)
  • Filter change indicator(selectable on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24v power
  • 5 year warranty

Specifications

Specifications



T801 Thermostat

The display range of temperature41°F to 95°F (5°C to 35°C)The control range of temperature44°F to 90°F (7°C to 32°C)

Load rating

1 amp per terminal, 1.5 amp maximum all terminals combinedDisplay accuracy± 1 °F Swing (cycle rate or differential)Heating is adjustable from 0.2°F to 2.0°F
Cooling is adjustable from 0.2°F to 2.0°F Power source18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Battery power from 2 AA Alkaline Energizer batteries Operating ambient

32° to +105° (O° to + 41°C)

Operating humidity

90% non-condensing maximum

Dimensions of thermostat

4.7″W x 4.4″H x 1.1″D
